DN80陽端球閥
用途：DN80陽端球閥是專門為武器裝備加油車設計輕盈、便捷的球閥，采用鋁合金材料。...
|

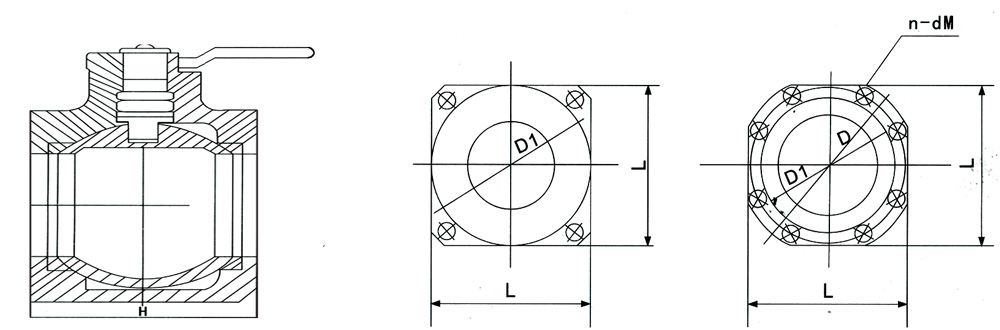

產品型號（公稱通徑} |
閥體通道孔 |
尺寸 |
||||||
|
H |
L |
L |
D |
D1 |
N |
Dm |
||
|
DN25 |
20 |
48 |
61 |
61 |
|
65 |
4 |
M8 |
|
DN40 |
28 |
60 |
76 |
76 |
|
76 |
4 |
M10 |
|
DN50 |
40 |
66 |
95 |
95 |
|
95 |
4 |
M10 |
|
DN65 |
65 |
108 |
124 |
124 |
|
136 |
4 |
M14 |
|
DN80A |
76 |
124 |
140 |
140 |
|
150 |
4 |
M14 |
|
DN100 |
88 |
140 |
165 |
165 |
205 |
180 |
8 |
M16 |
|
DN150 |
136 |
204 |
275 |
275 |
292 |
260 |
8 |
M16 |
